Partnering with some of the UK’s leading architectural practices and contractors we operate in line with CWCT Standards of best practice, partnering with leading aluminium curtain walling systems houses including Senior Architectural Systems, Metal Technology Systems and Technal by Hydro.

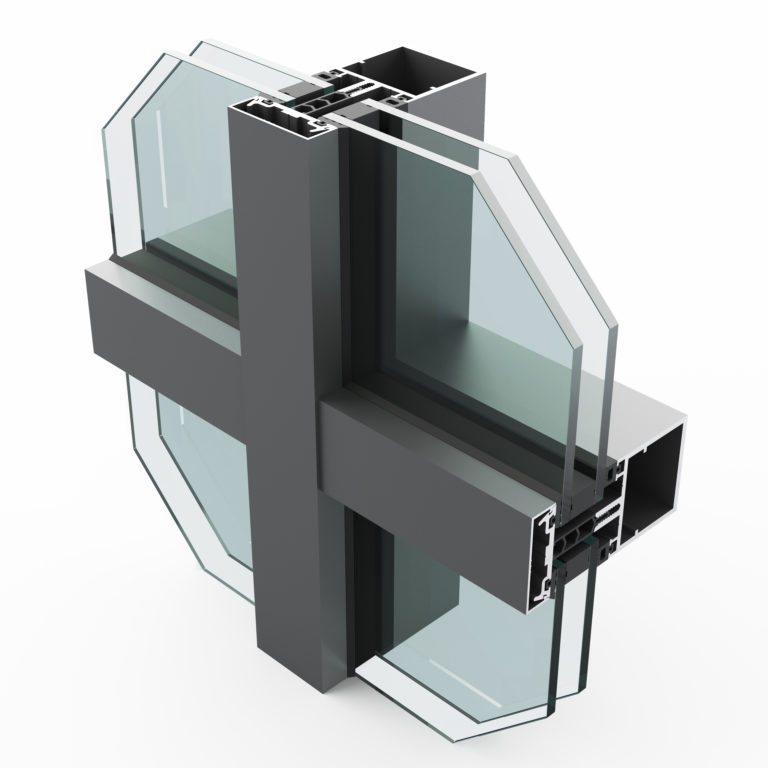

The SF52 has been designed to deliver maximum flexibility to architects and specifiers. It’s suitable for ground to high rise projects with consistent 52mm sightlines creating a highly contemporary and elegant aesthetic. All configurations are thermally broken, offer exceptional weather performance and are fully CWCT and EN13830 weather tested, forming a highly cost-effective aluminium glazing option with a projected service life of more than 40 years.
|
|
The Senior SF62 has been designed specifically for ultra-high-rise projects employing a larger 62mm box to offer more flexibility in accommodating structural movement. This includes the use of a larger rebate to create additional clearance between the section and infill, allows the glass more room to move and accommodate structural movement, also offering greater edge covering. All configurations are thermally broken, offer exceptional weather performance and have a projected service life of more than 40 years.
|
|

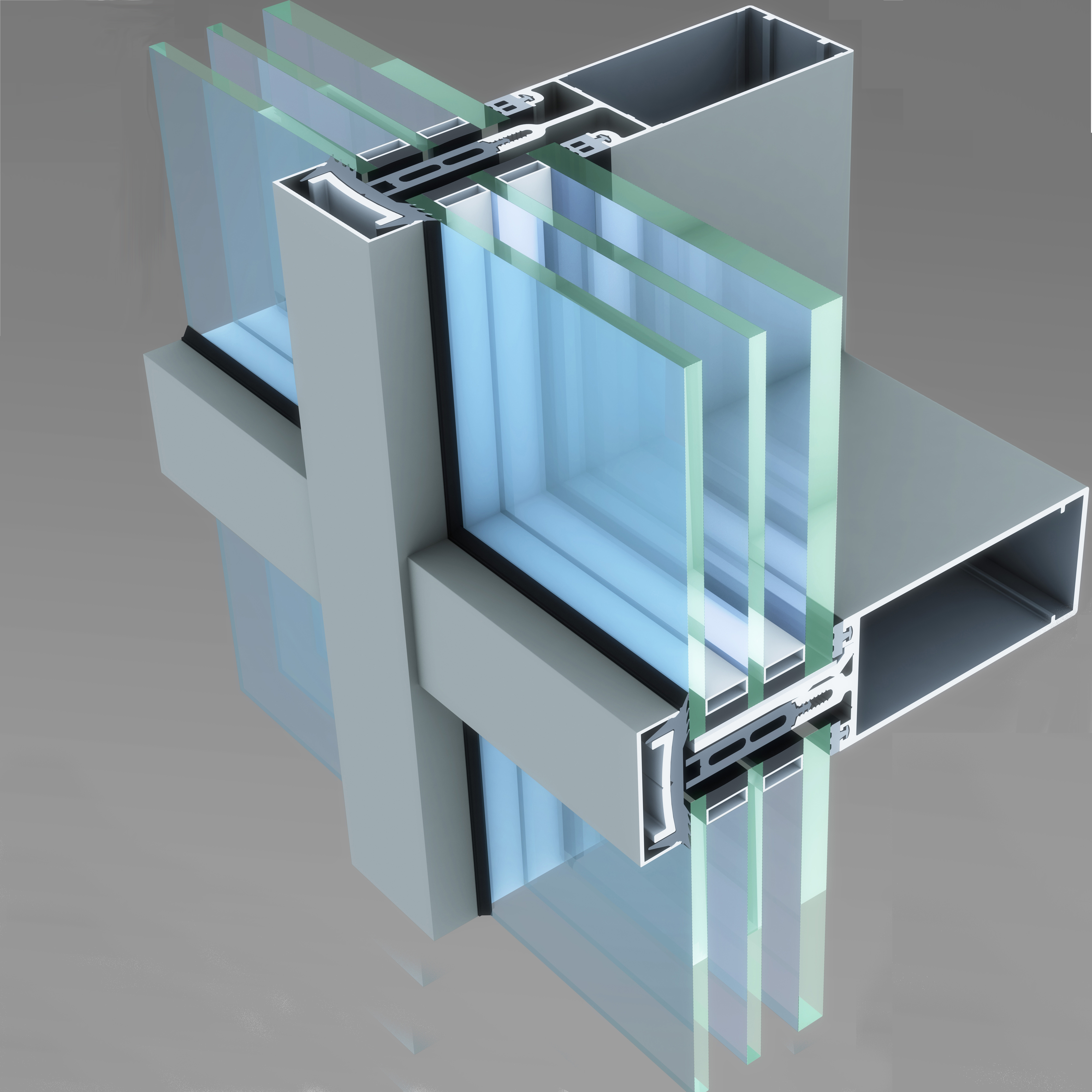

Designed for use in multi-storey and roof glazing applications Metal Technology System 17 is a highly flexible ‘stick’ built high-rise curtain walling system, accommodating a wide range of glazing types and caps, creating impressive design flexibility. Using a specially designed thermal isolator profile the system achieves whole window U-values of as low as 0.87 W/m2K, is rigorously weather tested and comes in a wide range of anodised and powder coated finishes.
|
|

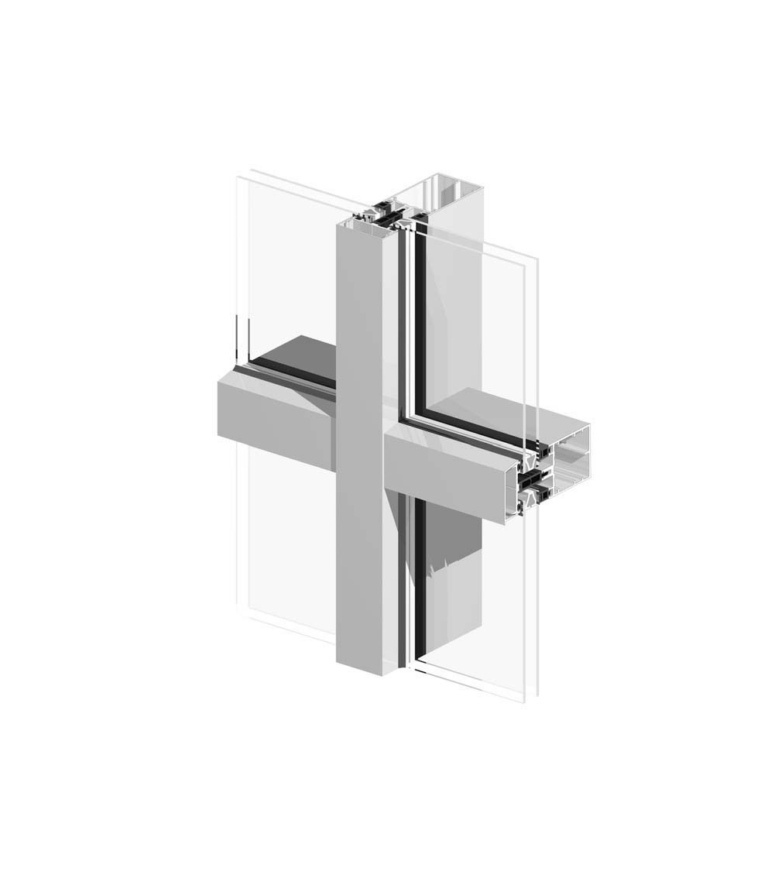

The Technal GEODE MX curtain walling system successfully combines the creative and visual demands of architects with the functional needs of contractors and developers to ensure optimum quality and cost efficiency. It also uses 52mm transoms and mullions creating consistent sight lines across a project, whether full height, structurally glazed or features beaded or sloped glazing. An advanced performance integrated thermal break maximises thermal efficiency, while the Technal GEODE MX curtain can also be used with a wide range of infill and glazing options, further maximising design flexibility.
|
|
